High efficiency integrated swimming pool filter
The pipeless integrated swimming pool filter is a smart, modern solution that aligns with the trend towards simpler, more efficient, and more aesthetically pleasing home amenities. It solves several key problems of traditional pools (space, installation complexity, pipe leaks) while introducing a few of its own (capacity limits, service accessibility).
Just choose the suitable swimming pool filter according to your demands.

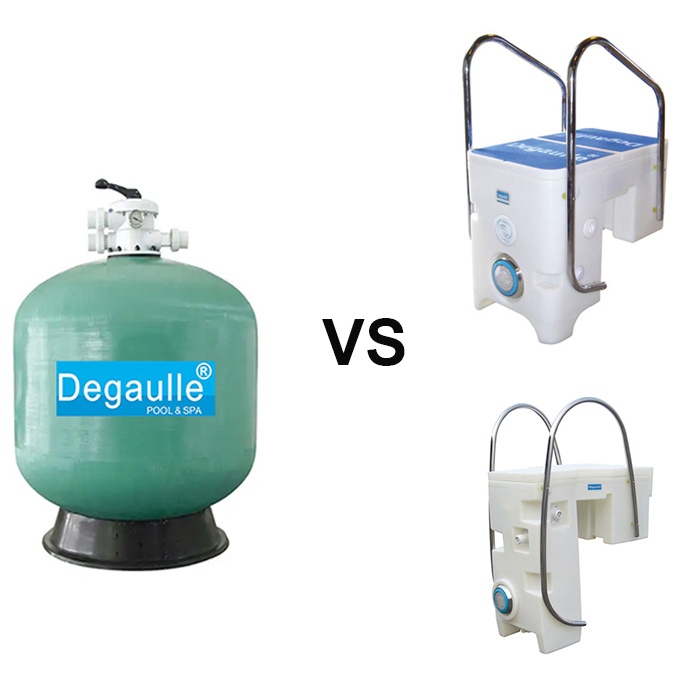

With the development of technology,the integrated swimming pool filter is widely used in swimming pools. In a traditional pool, the filter, pump, and etc are separate pieces of equipment housed in a "pool shed" or equipment pad, connected to the pool via a network of underground pipes (suction and return lines).

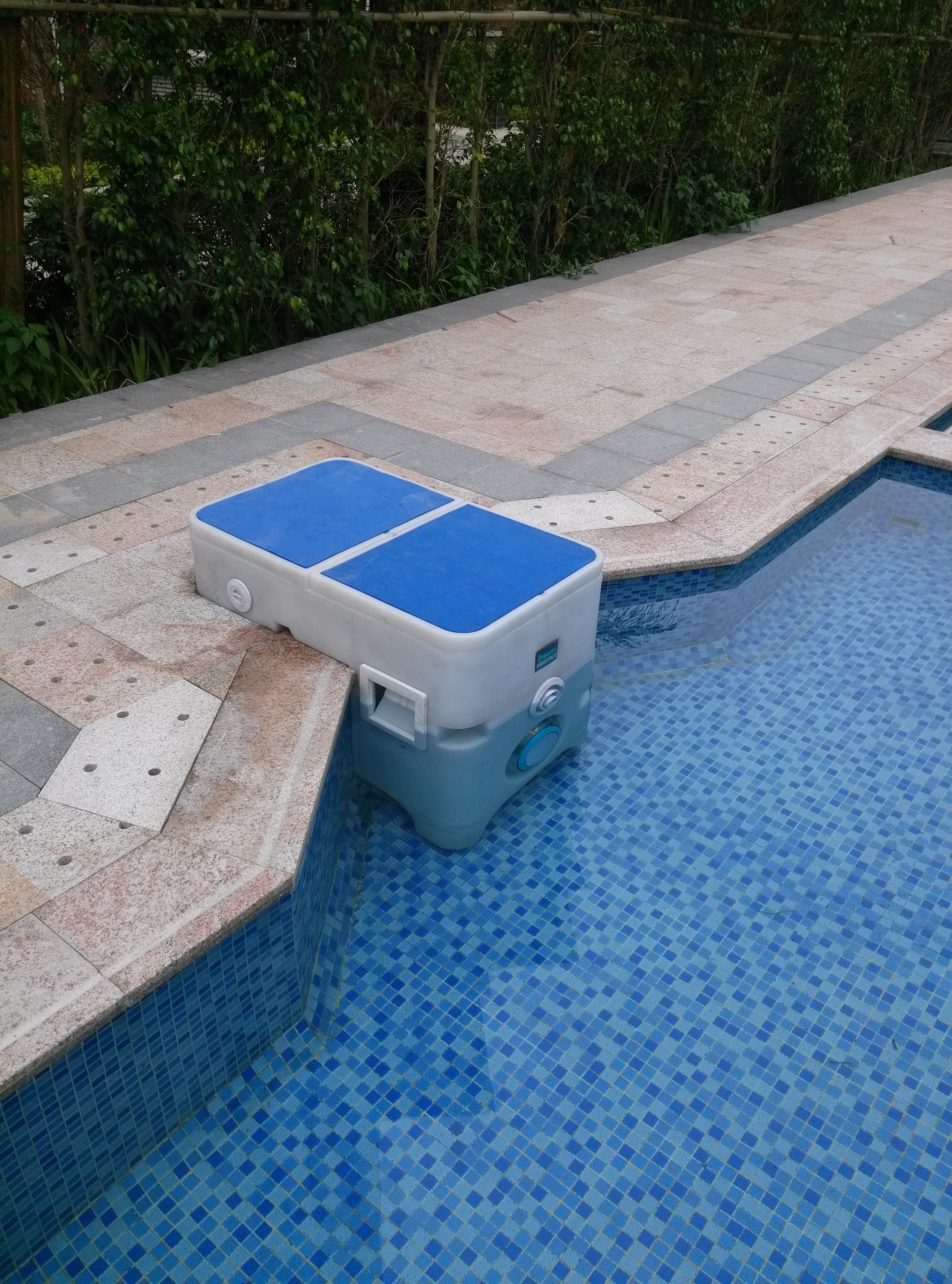

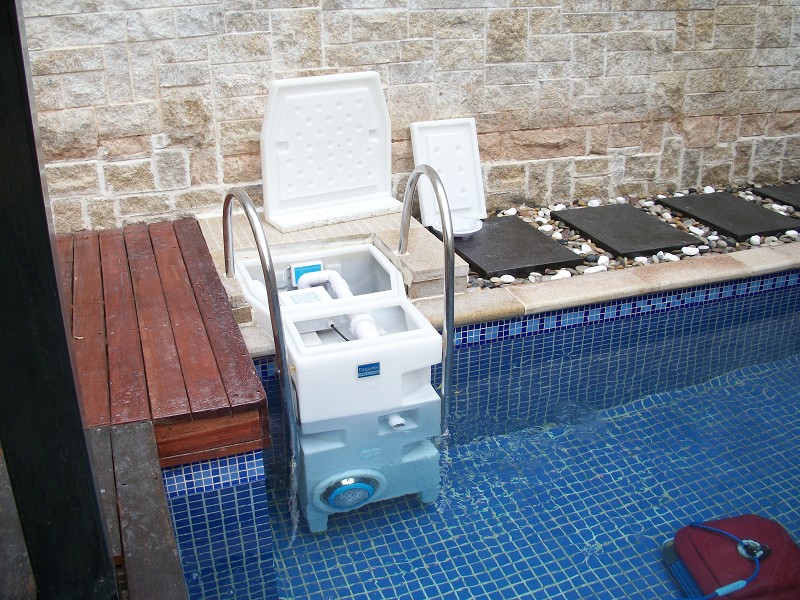

The pipeless integrated filter eliminates this external plumbing. The filtration system is built directly into the wall or structure of the pool itself. It's a self-contained, all-in-one unit.
The principle is the same as a traditional system (filter, pump, heater), but the layout is completely different. Imagine a large, waterproof cabinet built into the pool wall.
Water Intake: Water is drawn into the system through one or more intake grates located on the same unit or very close to it.
Filtration Chamber: The water passes through a filter cartridge (this is the most common type for these systems) or sometimes a small sand filter housed inside the integrated unit.
Pump & Circulation: A compact, high-efficiency pump (often a variable-speed pump) moves the water through the system.
Heating & Sanitation (Optional): Many integrated units also have a compact heat pump or electric heater and a salt chlorine machine (or an UV/Ozone sanitizer) built into the same cabinet.

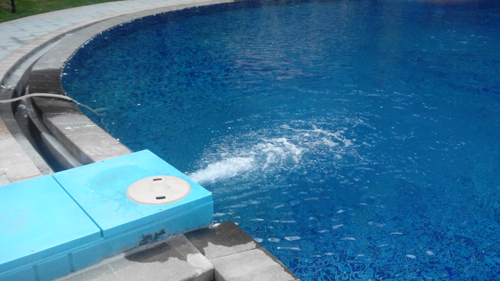

Water Return: The cleaned, treated, and potentially heated water is then ejected back into the pool through return jets, also located on the same unit.
The entire process happens within a single, streamlined unit embedded in the pool structure.
So it is really in easy installation ,space-saving & aesthetic and energy efficiency without the machine room.
Here are our three hot sale integrated swimming pool filter .
Model | S350 | DF10 | FX25 |
Material | PVC | PVC | PVC |
Flow | 25m³/h | 15m³/h | 25m³/h |
Filtration accuracy | 5-15um | 5-15um | 5-15um |
| Installation method | embedded/ wall-mounted | wall-mounted | wall-mounted |
| Other configuration | / | Ozone | Ozone |
| Filtation media | DuPont filter bag | DuPont filter bag | DuPont filter bag |
| Machine size(mm) | 1210*745*1100 | 960*580*880 | 1010*660* |
Underwater led light | 2pcs*18w/12v | 10w/12v | 10w/12v |

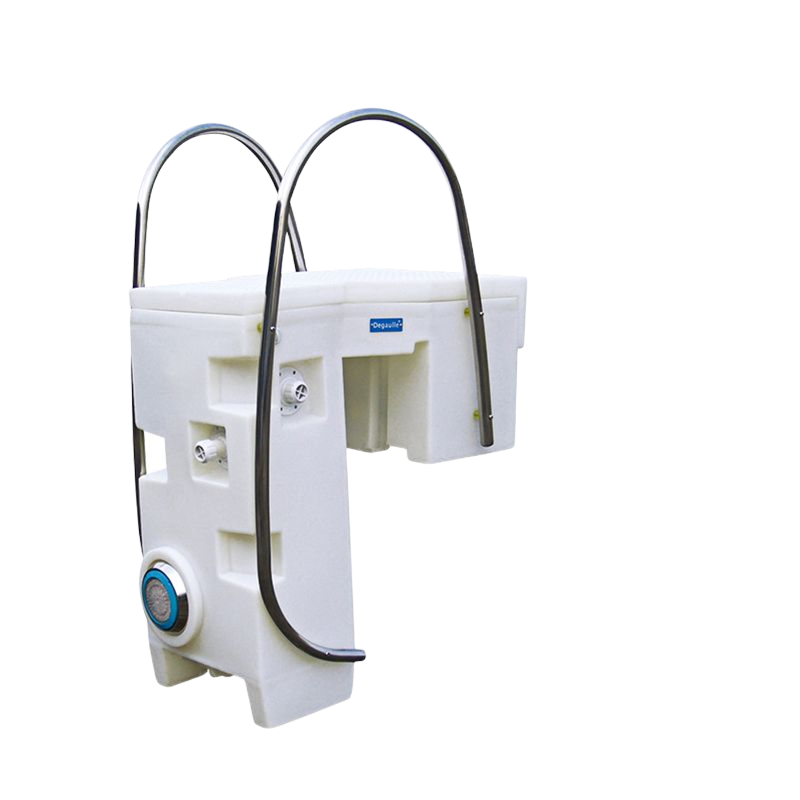

S350 DF10 FX25
The pipeless integrated swimming pool filter is a smart, modern solution that aligns with the trend towards simpler, more efficient, and more aesthetically pleasing home amenities. It solves several key problems of traditional pools (space, installation complexity, pipe leaks) while introducing a few of its own (capacity limits, service accessibility).
Just choose the suitable swimming pool filter according to your demands.
#swimmingpoolfilter #poolfilter #integratedswimmingpoolfilter
